Specifications
Size
Weight: 10kg
Height: 470mm
Width: 235mm Depth: 345mm
Shipping Size: 416mm x 416mm x 660mm, 15 kg
Electrical
Rated Supply Voltage: 100-240 VAC, 50/60 Hz
Rated Input: 0.19 amps MAX
Isolation Transformer: Medical Grade, compliant with IEC 60601-1 Min. 500W, min. 4x IEC C13 Outlets, specified for use at national mains voltage
Performance
Coverage: Standard: 0.25 –11mm TCC (Composite): Limbus to Limbus Extrapolated Data Point Coverage: Limbus to 18mm

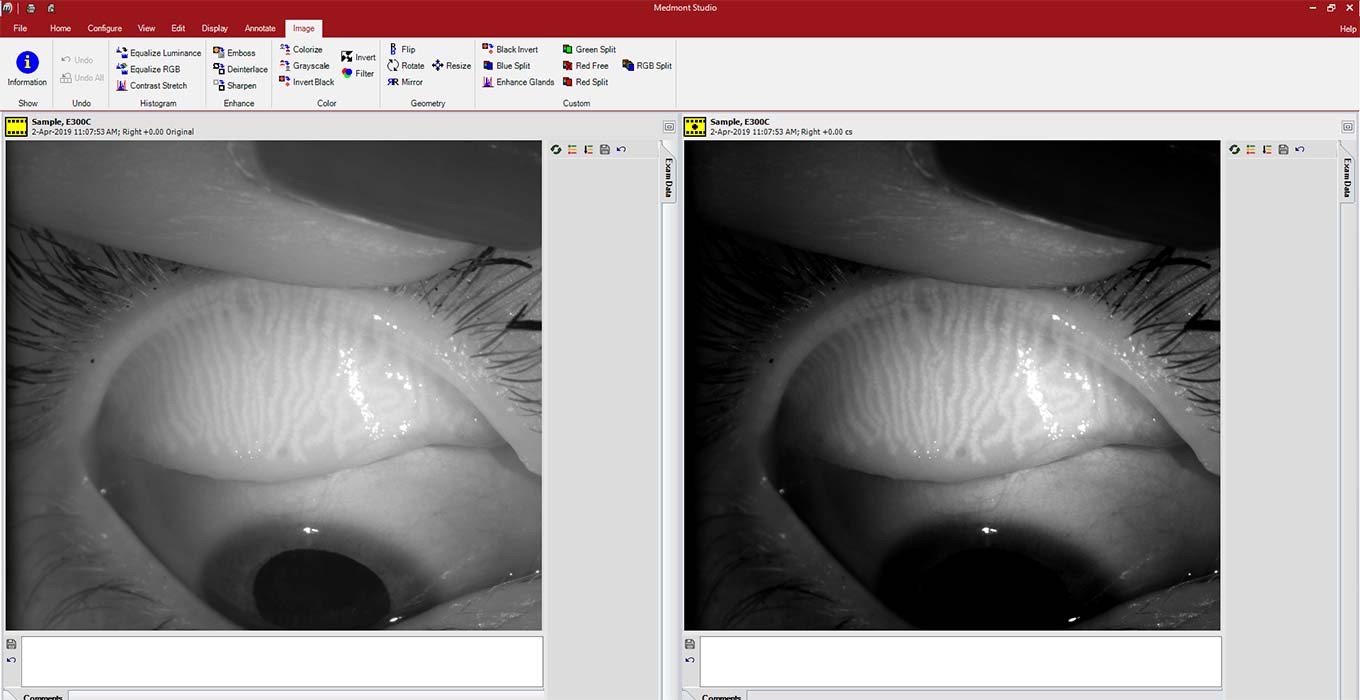

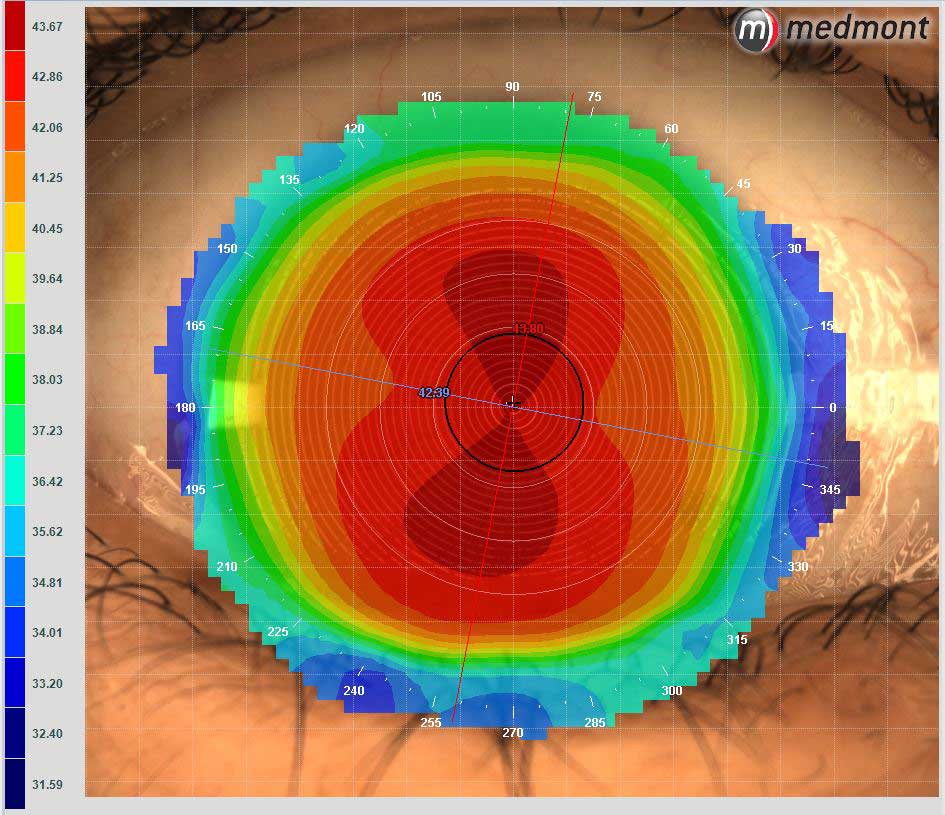

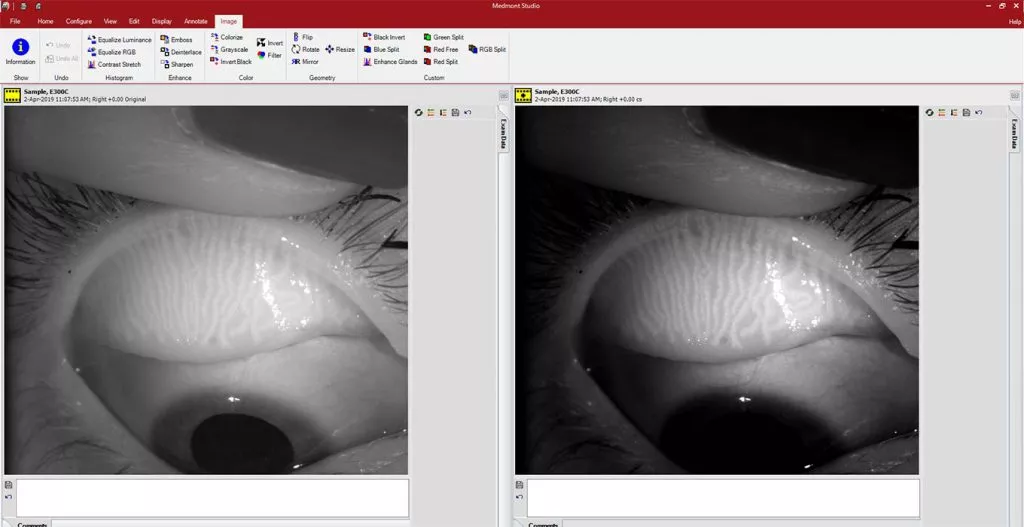

Field of View: Topography: 17.5 mm (H) Fluorescein: 20.0 mm (H) Anterior Image: 26.0 mm(H) Meibomian Image: 26.0 mm (H)
Repeatability/Accuracy (Test Object): 0.1 Diopters
Power Range: 10 –100 Diopters
Number of Rings: 32
Measurement Points: 102,000 Analyzed Points
Computer Minimum Requirements
PC and Mains Powered Peripherals: EN/IEC60950 Compliant
PC Requirements: OS: Microsoft™ Windows™ 10 Pro (recommended) or Home (64 and 32 bit editions) Windows Server 2016 or 2019 (64-bit edition only). Processor: Intel™ i5 generation 6 or later Motherboard: Genuine Intel™ chipset highly recommended. Memory: 8 GB for non-video captures, 16 GB for video captures. Hard Disk Space: 40 GB for non-video, 200GB for video captures (More for larger databases or busy practices). Video cards: GPUs with dedicated memory of 2 Gig or more are recommended. Screen resolution: Recommended 1920 x 1080; Minimum supported: 1280 x 720
USB: USB 3.1 Gen 1 Compliant port on the PC
